Quick Details
Warranty:Lifetime
After-sale Service:Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability:graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application:Hotel, Upvc Windows
Design Style:Modern
Place of Origin:Shanxi, China
Brand Name:Zhongde
Model Number:60mm
Type:60mm
Material:Upvc
Color:White
MOQ:10 Tons
Length:5.9m
Style:Europe
Product Name:Sliding Pvc Profile
Usage:Building Construction Windows Doors
Open type:Swing Inside
Shape:Customer Made
Introduction of UPVC/PVC Profiles Details:
| Products Advantages: Good Quality Best Price UPVC Window Profile: (1)Good Water Sealing Property for extruded pvc plastic profile With rain-proof plate, and grooves and poles water drainage, doors and windows can isolate rain to outdoors completely. (2)Aging Resisting about extruded pvc plastic profile Adopting imported improver, and with ultraviolet-radiation-proof absorbent, plastic doors and windows remain the same color and without aging under burning sun, heavy rain, dryness, and wetness from minus 30 degrees to 70 degrees. (3)Fire Proof Property about extruded pvc plastic profile The plastic does not self-ignite, not support combustion, and can self-extinguish. (4)Air-tightness There are sealed strips on the gaps of joints, which can save energy. (5)Easy Maintained The PVC profiles will not be influenced by dust, cement, and agglutinant, etc. They can be cleaned by any cleaning agents. |
| No | Testing them | Technical requirement | Testing result |
| 1 | Status after 150ºC heating | No bubbles,cracks and pitting | passed |
| 2 | Vicat softening temperature(B50)ºC | ≥75 | 81.0 |
| 3 | Bending modulus of elasticity(Mpa) | ≥2200 | 2.39*103 |
| 4 | Tensile-impact strength(KJ/M2) | ≥600 | 652 |
| 5 | Charpy notched impact strength | ≥20 | 21.8 |
| 6 | Welding angle mean stress | ≥35 | 47.1 |
| 7 | Welding angle min.stress | ≥30 | 42.1 |
| 8 | Water tightness | 250-350 | Passed |
| 8 | transmittance | K=1.0w/(m2.k) | passed |
| 9 | Air permeability | 1.0≥q1≥0.5 3.0≥q2≥1.5 | passed |
| 10 | acoustics | Rw+Ctr=31dB | passed |
| 11 | Window frame welding strength | ≥3500N | Passed |
| 12 | Window sash welding strength | ≥4000N | Passed |
Description:
(1). Can OEM upvc products
(2). Package: proctect film on the products surface, plastic package inside and Nylon package outside
(3). Delivery time:8 days for 10 tons, 12 days for 20 tons
(4). All products comply with Europen Standards and Chinese National Standards
(5). UV stability and efficient thermails insulations
(6).All products are lead-free profiles
All products are comply with Europe Standards and Chinese Standards, All profiles are Lead-Free products, anti-UV surface, Co-extruded with rubber together. All products adapt to extreme climate, weather resistant, heat preservation, energy saving, green products.
Upvc colored profiles include ASA single&double side colored, Full body colored, Laminated profiles.
Casement Series:60mm/66mm/70mm
Sliding Series:50mm/60mm/75mm/80mm/88mm/96mm/105mm/110mm
Wall Thickness:1.7mm/1.8mm/2.0mm/2.2mm/2.5mm/2.8mm
| PRODUCTS NAME | ZHONGDE UPVC PROFILES |
| CASEMENT SERIES | 60/66/70 SERIES FOR CASEMENT WINDOOR |
| SLIDING SERIES | 50/60/75/80/88/105 SERIES FOR SLIDING WINDOOR |
| COLOR | BLUE WHITE/CLEAN WHITE/MILK WHITE/GRAY/BLACK/BROWN |
| RUBBER | CO-EXTRUDED WITH PROFILES |
| THICKNESS | 1.8/2.0/2.2/2.5/2.8/3.0MM |
| CHAMBER | 3-7 CHAMBERS |
| STANDARDS | CE/SGS/ISO9001 |
1.Casement series(Thickness 2.0mm,2.2mm, 2.5mm, 2.8mm)
60mm 66mm 70mm for casement
All frame,mullion, sash, glazing beads can co-extrusion with rubber
2.Sliding series(Thickness 2.0mm,2.2mm, 2.5mm, 2.8mm,3.0mm)
60mm,75mm,80mm,88mm,92mm,105mm,110mm
All frame,mullion, sash, glazing beads can co-extrusion with rubber

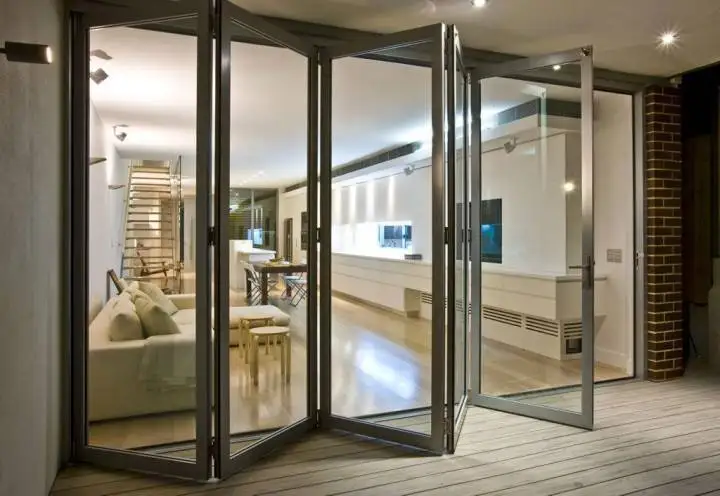

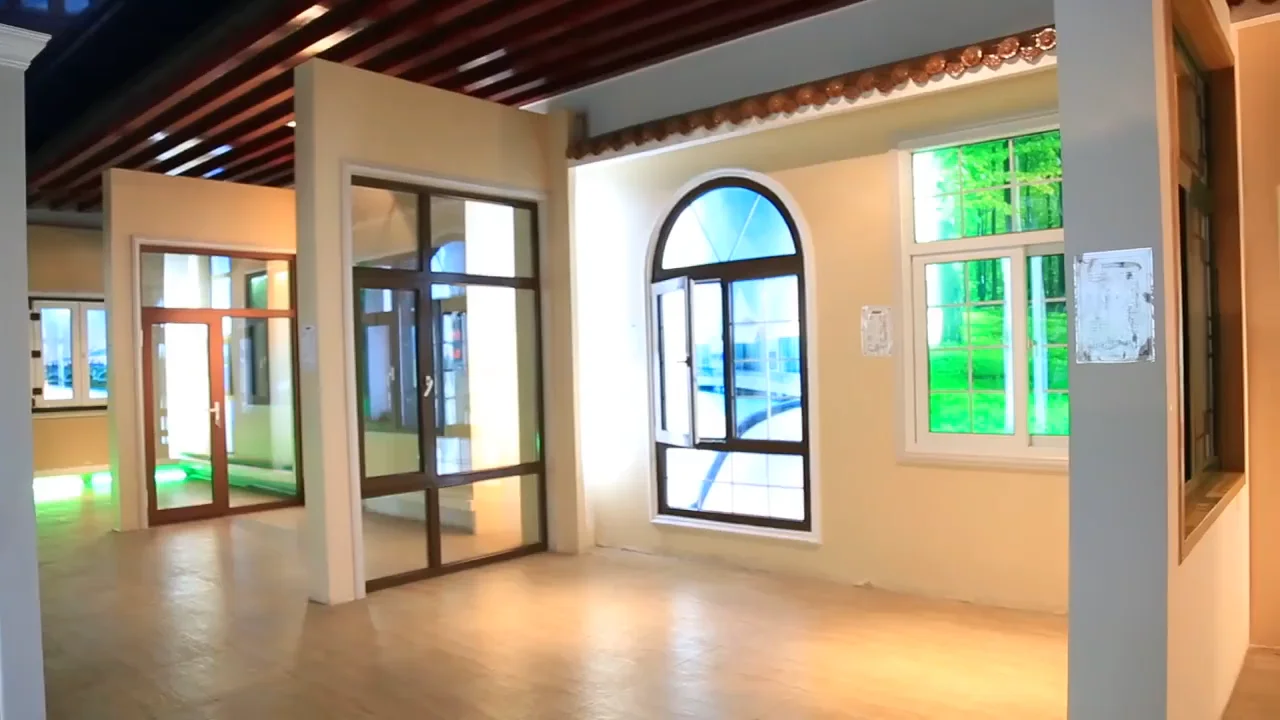

Sample Contruction Building:
