Quick Details
Warranty:NONE
Customized support:OEM
Place of Origin:Shanxi, China
Brand Name:Bigstars
Model Number:optional
Type:Honing stone
Application:Honing stone used at honing machine
Usage:Honing
Product name:Bigstars
Material:Diamond/CBN
Service:OEM
MOQ:2 Pieces
Model number:H,K, L, P Series

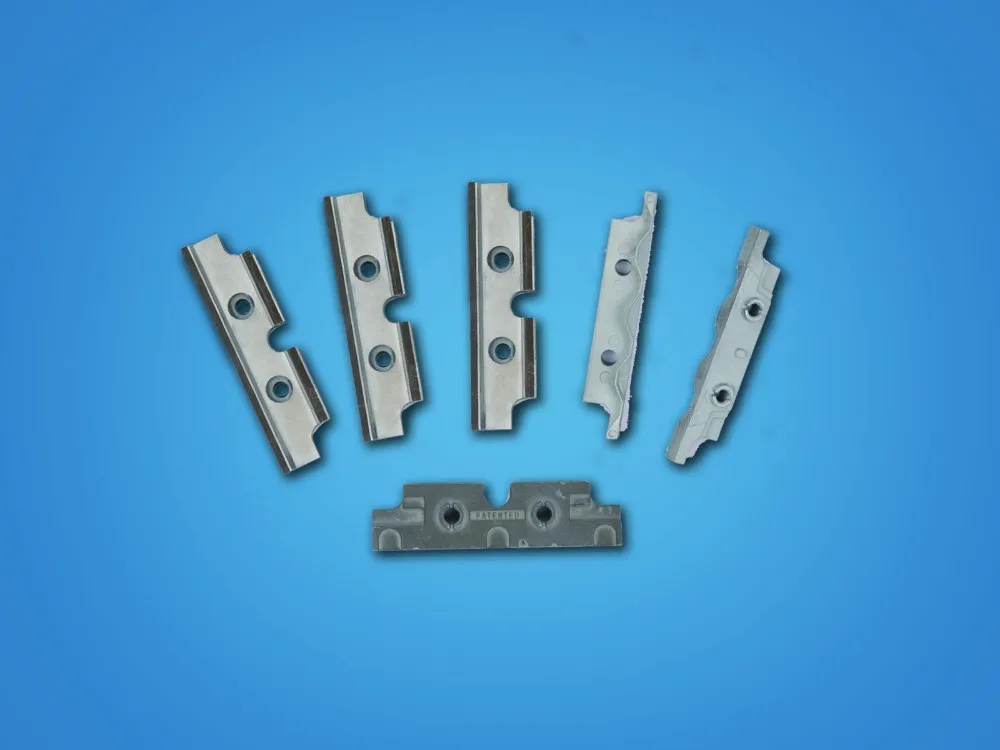

Sunnen H70 series honing stones and honing guides

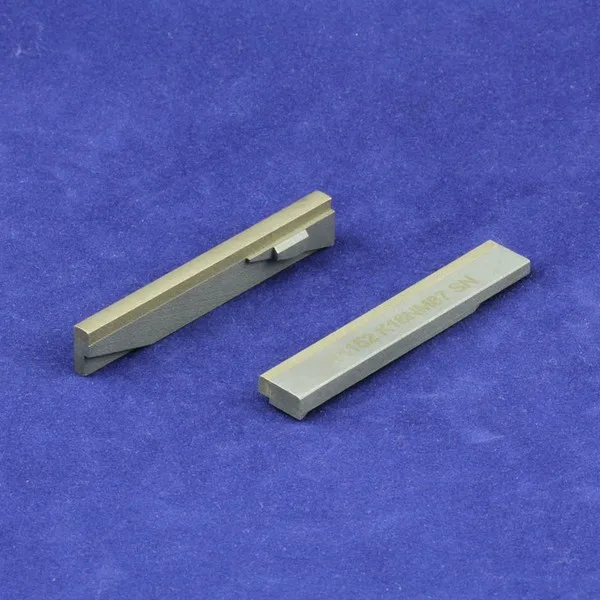

Horizontal honing stones: designation and selection
| Parameter of honing stones | |||||||||||
| Code | NM15 | NM25 | NM35 | NM45 | NM55 | NM65 | NM75 | NM85 | NM95 | NM05 | NM005 |
| Grit size | 80# | 100# | 120# | 150# | 220# | 250# | 300# | 400# | 500# | 600# | 1000# |
| FEPA grit size | D181 | D151 | D126 | D107 | D76 | D64 | D54 | D46 | D25 | / | / |
| Roughness botained | 2.0~1.6 | 1.6~1.4 | 1.4~1.3 | 1.3~1.0 | 1.0~0.8 | 0.8~0.7 | 0.8~0.6 | 0.6~0.4 | 0.4~0.2 | 0.4~0.2 | 0.1~0.05 |
| Honing allowance | 0.1~0.2 | 0.07~0.15 | 0.05~0.1 | 0.05~0.1 | 0.03~0.07 | 0.02~0.04 | 0.01~0.03 | 0.01~0.02 | 0.01~0.02 | 0.01~0.015 | 0.005 |
Horizontal honing stone series
| K series | |||||||||||
| Series number | K3 | K4 | K5 | K6 | K8 | K10 | K12 | K16 | K20 | AK20 | AK30 |
| length of honing stone | 15 | 15 | 17 | 19 | 32 | 32 | 45 | 57 | 63 | 63 | 63 |
| Bore diamenter | 2.2~3 | 2~4 | 4~5 | 5~6 | 6~8 | 8~9.5 | 9.5~13 | 13~16 | 16~19 | 19~32 | 32~40 |
| Adapeter | K3 | K4 | K5 | K6 | K8 | K10 | K12 | K16 | K20 | AK20 | AK20 |
| L series | |||||||||||
| Series number | L3 | L4 | L5 | L6 | L8 | L10 | L12 | L16 | L20 | AL20 | AL30 |
| length of honing stone | 25 | 25 | 32 | 36 | 57 | 57 | 89 | 114 | 114 | 114 | 114 |
| Bore diamenter | 2.5~3 | 3~4 | 4~5 | 5~6 | 6~8 | 8~9.5 | 9.5~13 | 13~16 | 16~19 | 19~32 | 32~40 |
| Adapeter | K3 | K4 | K5 | K6 | K8 | K10 | K12 | K16 | K20 | AK20 | AK20 |
| B series | ||||||||
| Series number | B8 | B10 | B12 | B14 | B16 | B20 | AB20 | AB30 |
| length of honing stone | 47 | 47 | 60 | 70 | 85 | 95 | 95 | 95 |
| Bore diamenter | 6~8 | 8~9.5 | 9.5~13 | 9.5~13 | 13~16 | 16~19 | 19~32 | 32~40 |
| Adapeter | K8 | K10 | K12 | K16 | K16 | K20 | AK20 | AK20 |
| SK series | |||||||
| Series number | SK6 | SK8 | SK10 | SK12 | SK16 | SK20 | SK20 |
| length of honing stone | 36 | 36 | 45 | 55 | 75 | 80 | 80 |
| Bore diamenter | 5~6 | 6~8 | 8~9.5 | 9.5~13 | 13~16 | 16~19 | 19~32 |
| Adapeter | K6 | K8 | K10 | K10 | K16 | K20 | AK20 |
(Note: special type of honing stone is available according to customer's request)
