abrasive tools 12V2,12V5,11V9,12V9 Diamond CBN Grinding Wheel for Tungsten carbide

Quick Details

Width:Not Rated

Warranty:NONE

Application:Aluminum, Deburring, Ferrous Metals, nonferrous metals

Thickness:1/2in

Grit:100/120, 220, Customized

Wheel Type:Straight Grinding Wheels, Flared Cup Grinding Wheels

Customized support:OEM

Place of Origin:Shanxi, China

Brand Name:Bigstars

Model Number:12V2,12V5,11V9,12V9

Shape:Cup-Shaped, 12V2,12V5,11V92,12V9,or as you wish

Bonding Agent:Resin, Resin or Ceramic

Hardness:standard

Viscosity:Proper

Size:optional, 80mm-500mm

Abrasive:Cubic Boron Nitride

Usage:Grinding

Indication of Cup-shaped grinding wheel(12V2)

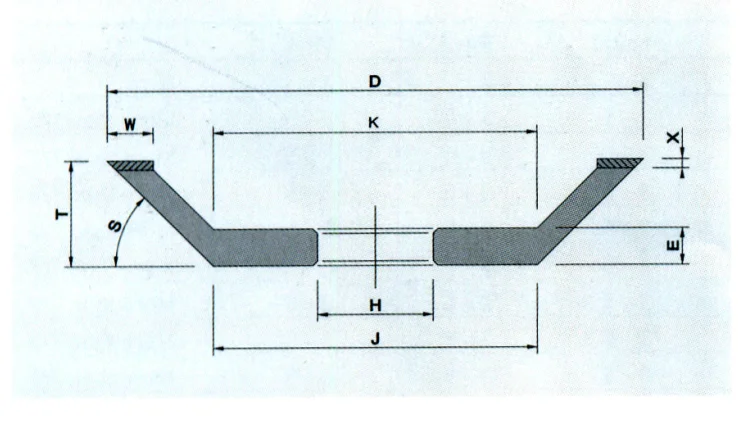

Dimension Figure

(Flat View)

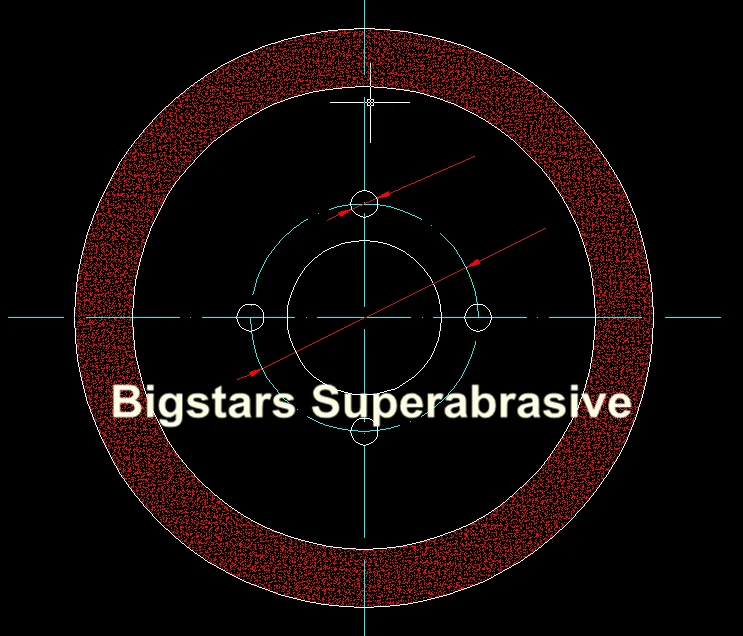

(Top View)

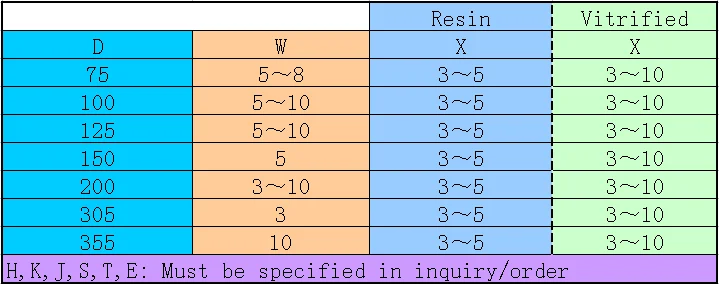

Chart

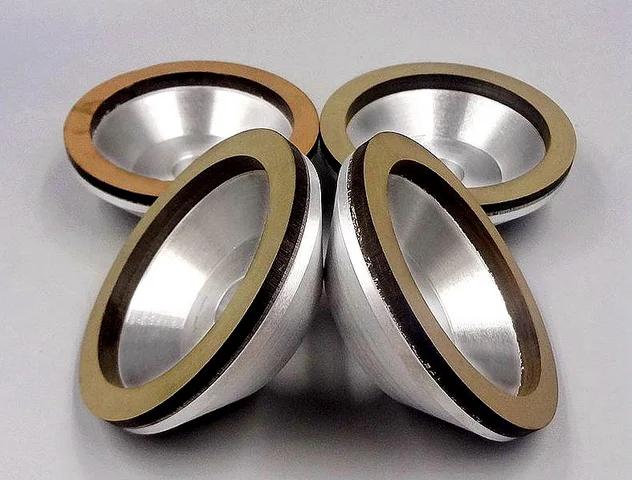

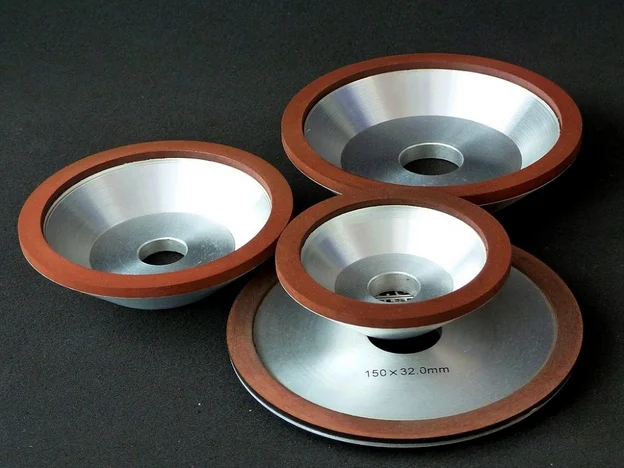

Products Show

Application and Performance

Hardness of abrasive and superabrasive

 Materials to be ground

Characteristics of different bond

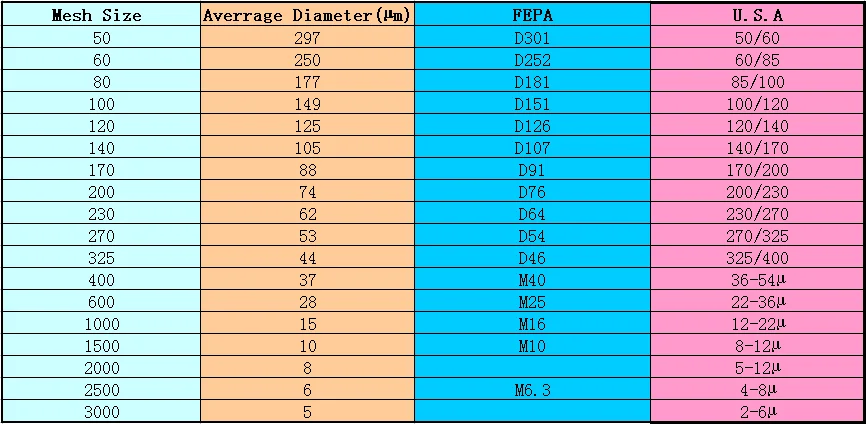

Indication of grit size

Resin Bond Wheels

Resion bond is usually made with heat-cured resin mainly composed of phenolic resib Resin bond wheel has excellent grinding ability , surface finish and minimal chipping. It is widely applied for difficult- to-machine materials such as cemented carbide,ceramics, glass,and silicon as well as ferroous materials such as high-speed steels and sintered ferrous metals.

Vitrified Bond Wheels

Vitrified bond is a vitreous binding material and generally contains pores inside while other materials contain no pores.Therefore vitrified bond wheels have excellent grinding ability and are superior in forming.
