Quick Details
Warranty:None
Certification:Reach
Customized support:OEM
Place of Origin:Shanxi, China
Brand Name:Bigstars
Model Number:Nagel,Gerhing
Type:Abrasive Block
Grit:80#--1000#
Usage:Honing piecework equiped with honing head
Material:Diamond + Metal Powder,CBN+Metal Powder
Shape:Rectangle
Abrasive:Diamond,CBN
Color:Black
Size:80*2*5,80*4*6,or as your wish
Application:automobile , motor, compresser
Service:OEM Service
MOQ:3Pieces

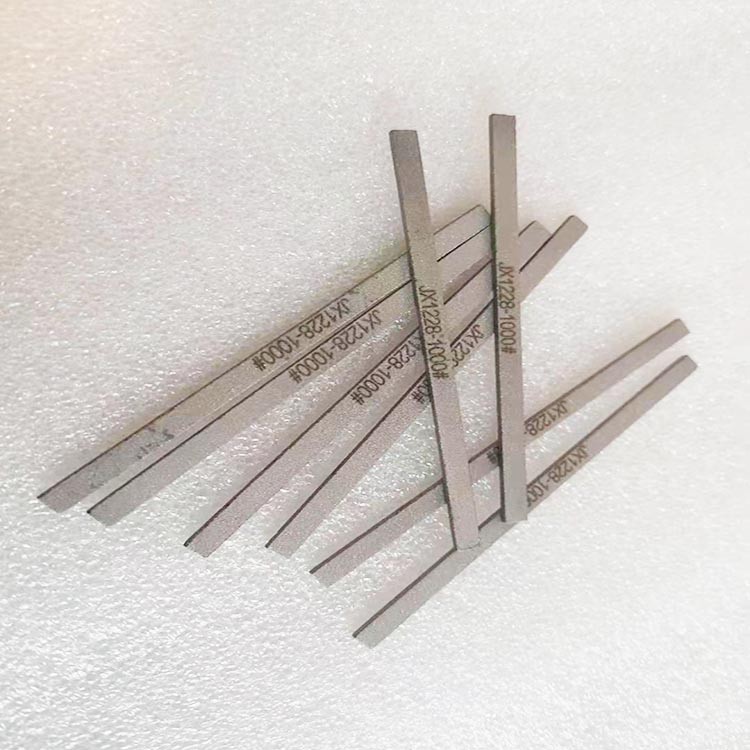

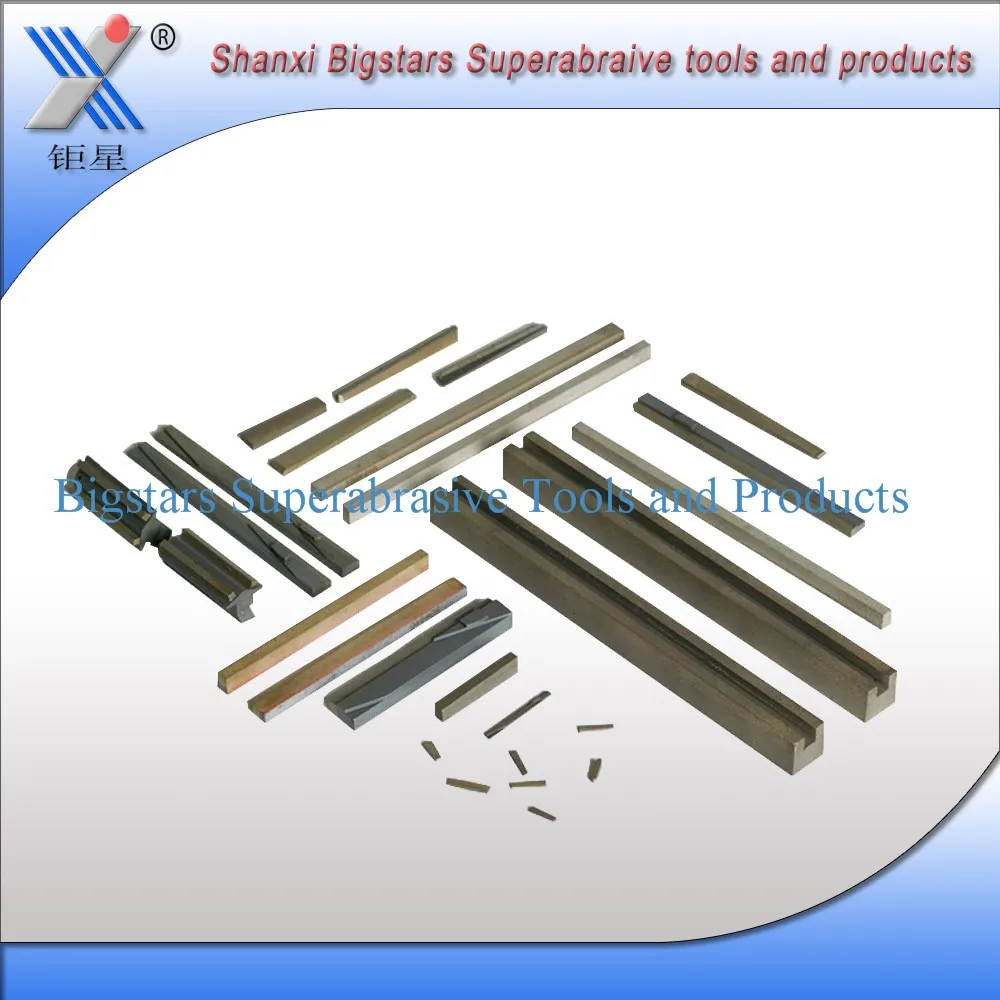

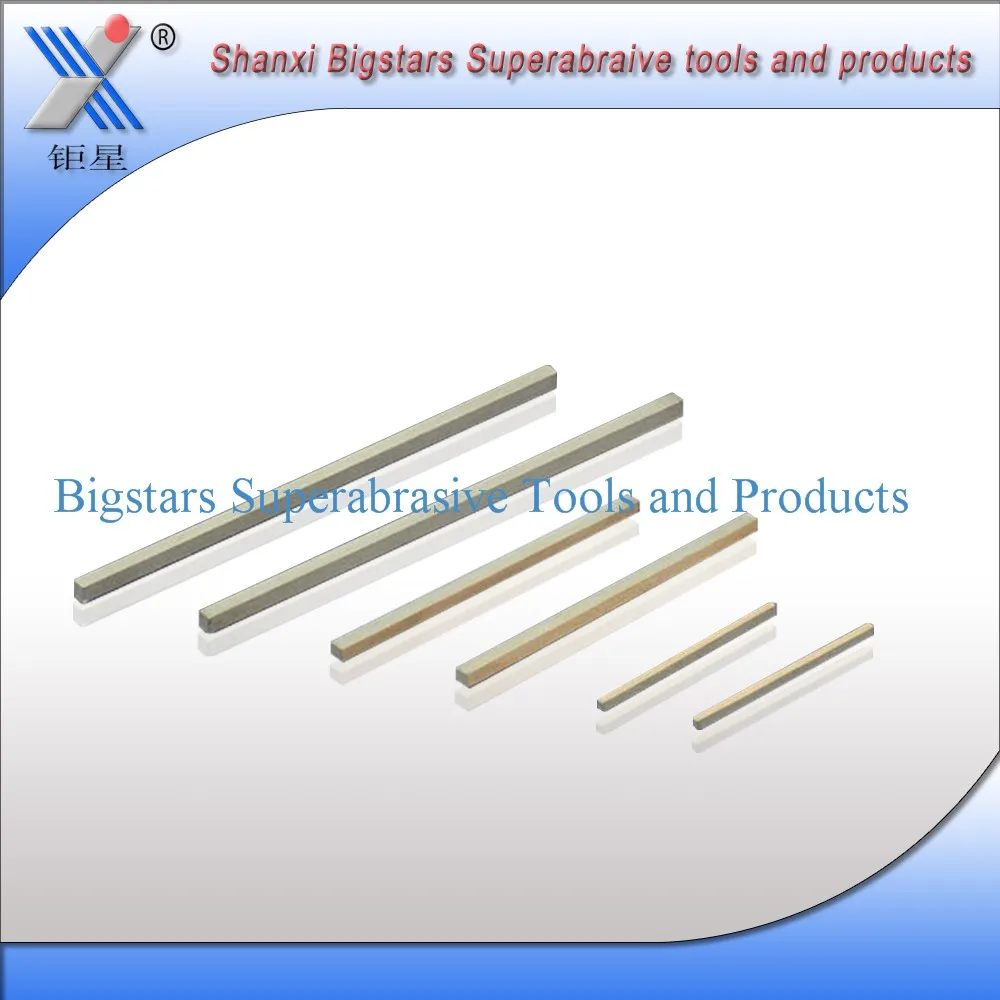

PICTURE SHOW
Application and performance
| CBN honing stones | Diamond honing stones | ||||||||
| Application | Rigid steel, alloy, etc. | Glass, quartz, rigid alloy, cast iron, ceramic materials, etc. | |||||||
| Performance | High strength and hardness, suitable for all hard materials | High strength and hardness, suitable for all non-carbide hard materials | |||||||
Grain size and roughness
| Material | Honing stone type | Abrasive grain sizes | ||||||||||
| 80 | 100 | 150 | 220 | 280 | 320 | 400 | 500 | 600 | 1200 | |||
| Rigid steel | CBN | — | 1.40 2.00 | 1.15 | 1.00 | 0.70 | — | 0.50 | — | 0.18 | 0.05 | |
| Mild steel | CBN | — | 1.60 2.50 | — 2.00 | 1.25 | — | — | 0.65 | — | 0.40 | 0.12 | |
| Cast iron | Diamond | — | — | — | 2.00 | — | — | 1.27 | — | 0.50 | 0.30 | |
| Hard alloy | Diamond | — | — | 0.75 | 0.50 | — | — | 0.18 | — | 0.08 | 0.03 | |
| Ceramic | Diamond | — | — | 1.27 | 1.00 | — | — | 0.50 | — | 0.40 | 0.25 | |
| Glass | Diamond | — | — | 2.40 | 1.80 | — | — | 0.75 | — | 0.40 | 0.20 | |
Parameter of honing stones
| Code | NM15 | NM25 | NM35 | NM45 | NM55 | NM65 | NM75 | NM85 | NM95 | NM05 | NM005 |
| Grit size | 80# | 100# | 120# | 150# | 220# | 250# | 300# | 400# | 500# | 600# | 1000# |
| FEPA grit size | D181 | D151 | D126 | D107 | D76 | D64 | D54 | D46 | D25 | / | / |
| Roughness botained | 2.0~1.6 | 1.6~1.4 | 1.4~1.3 | 1.3~1.0 | 1.0~0.8 | 0.8~0.7 | 0.8~0.6 | 0.6~0.4 | 0.4~0.2 | 0.4~0.2 | 0.1~0.05 |
| Honing allowance | 0.1~0.2 | 0.07~0.15 | 0.05~0.1 | 0.05~0.1 | 0.03~0.07 | 0.02~0.04 | 0.01~0.03 | 0.01~0.02 | 0.01~0.02 | 0.01~0.015 | 0.005
|
